Factory U Type Double Beam Rail Gantry Crane Heavy Duty

Product Categories
Xinxiang Magicart Cranes Co., LTD
Contact Now

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

  • 1
  • 2

Brand Name : Magicart

Model Number : U type

Certification : CE, ISO, SGS, GOST, BV

Place of Origin : Henan, China

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30000 sets per year

Delivery Time : According to customer needs

Packaging Details : High quality plywood crate and plastic woven cloth

Capacity : 10-100t, customized

Span : 18-35-m, customized

Lifting Height : 10-20m, customized

Class : A3~A8

Trolley Speed(m/min) : 20m/min or customized

Color : Customer Requirements

Wheel Pressure : Cart 185KN/Handcart 300KN

Lifting speed : 5.9-9.2m/min or according to customers' demand

Widely used in : Workshop, warehouse, store yard, etc.

After-sales service provided : Engineers available to service machinery overseas

Contact Now

Factory Use U Type Double Beam Gantry Crane High Efficiency Heavy Duty

Product Description

Factory Use U Type Double Beam Gantry Crane High Efficiency Heavy Duty is a special design type gantry crane. It always applied to general materials handling service in outdoor freight yard or along railway lines, such as loading, unloading , lifting and transferring work.Its operation control model: Ground cable handle, Group wireless remote control, Cabin operation or among the two control model together with use.

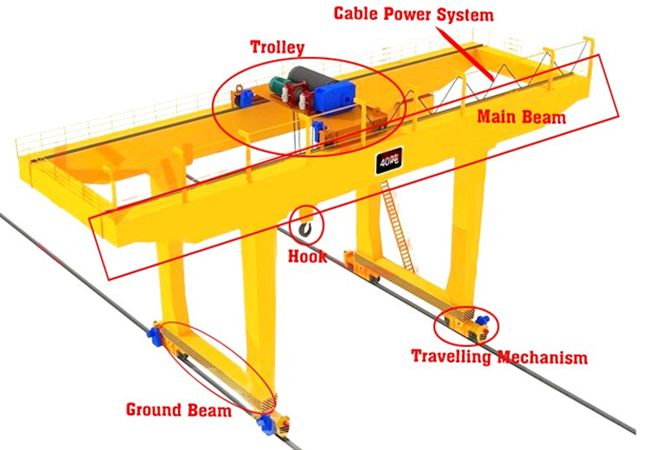

​​Drawing and Specification

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

Load Capacity (ton)

Span /Rail Gauge

(m)

Max. Lifting height-H2

(m)
5 5~35 5~25
10 5~35 5~25
16 10~50 5~25
20 10~50 5~35
25 10~50 5~35
32 10~50 5~35
50/10 10~50 5~35
70 10~50 5~35
100 10~50 5~35
120 10~50 5~35
150 10~50 5~35
200 15~50 10~35
250 15~50 10~35
300 15~50 10~35
350 15~50 10~35
400~800 15~50 10~35
Customizable Customizable Customizable

Advantages

1.Frequency conversion, double speed, single speed, and All hoist and crane movements are independent an d can be run simultaneously different design duo to meet crane applications.

2.Whole layout provides good protection against special working environment. Such as gas workshop
3.Double box beam with steel legs moving through the ground beam as crane travelling system

Product Details

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

Package and Delivery

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

Installation and Commissioning

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

Product Certificate

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

Factory U Type Double Beam Rail Gantry Crane Heavy Duty

FAQ

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?
A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;


4. Q: What's your warranty period?
A: 12 months from cranes accepted;

5. Q: Do you have engineer oversea installation service?
A: Yes; We have;

6. Q: What kinds of products do you have?
A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?
A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?
A: Yes, our electric winches could drag horizontal, drag inclined, hoisting vertical.
