Heavy Duty Traveling Crane In Factory Workshop Double Beam Bridge Crane
Product Description
QD double girder overhead crane is composed with girder frame, crane travel device, and the trolley with lifting and moving device. There are Pave the rail for the trolley move on the main girder. Assemble the moving table on the outside of the two main girder, one side is prepare for the assemble and maintenance the crane move device, another side is prepare for the assemble of the trolley conductor device.
There are full field of view Cabin suspend under the main girder, there are joint control desk or single control box packed within the Cabin, assemble the sidelong ladder between the Cabin and moving table, The main girder joint with the two side end carriage which with the joint point in the middle.
Drawing and Specification
| Load Capacity (ton) | Span /Rail Gauge (m) | Max. Lifting height (m) |
| 1 | 5~35 | 5~25 |
| 3 | 5~35 | 5~25 |
| 5 | 5~35 | 5~25 |
| 10 | 5~35 | 5~25 |
| 12.5 | 5~35 | 5~25 |
| 15 | 5~35 | 5~25 |
| 16 | 10~50 | 5~25 |
| 20 | 10~50 | 5~35 |
| 25 | 10~50 | 5~35 |
| 32 | 10~50 | 5~35 |
| 50/10 | 10~50 | 5~35 |
| 70 | 10~50 | 5~35 |
| 100 | 10~50 | 5~35 |
| 120 | 10~50 | 5~35 |
| 150 | 10~50 | 5~35 |
| 200 | 15~50 | 10~35 |
| 250 | 15~50 | 10~35 |
| 300 | 15~50 | 10~35 |
| 350 | 15~50 | 10~35 |
| 400~800 | 15~50 | 10~35 |
| Customizable | Customizable | Customizable |
Main Features of QD model overhead crane
- Long Life Span: 30-50 years;
- Easy for Installation and maintenance;
- Reasonable structure and strong rigidity;
- The speed can be frequency inverter speed control;
- Control method is cabin control or remote control;
- Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
- Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

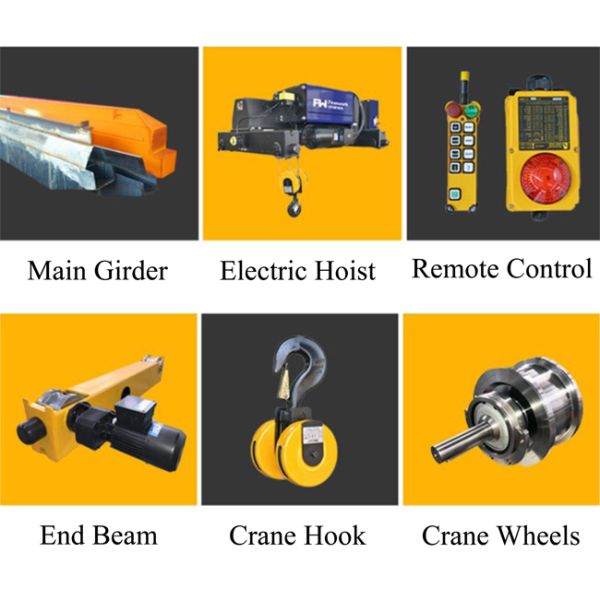

Product Details
Package and Delivery
FAQ:
1.Is your product customized?
Thanks for your question. Yes, because the working condition are different, all our products are customized depending on detail requirement! So if you give us more information about the lift capacity, span, lift height, power source and other specials, we will give you a very quick and accurate quotation.
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
Thanks for your question. The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us!
4. What’s the max lifting capacity of the crane?
Thanks for your question. The max Lifting capacity of our standard crane are up to 450 ton. If this can’t satisfy your working requirement. Please contact us for special customized.
5. The space of my workshop is limited, can the crane ok for mine?
Thanks for your question. For low headroom workshop, we have the Special products. The detail dimension please consult our professional engineer.
6. Can the crane work in hazardous environment?
Thanks for your question. This type product is just for application in general manufacturing workshop. For hazardous environment, please consult our professional sales manager.
7.Do your side can provide lift tools?
Thanks for your question. Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement's.
